Cnc Machine Zero Setting

August 15, 2022 Post a Comment

By setting up your machine absolute. Select MDI mode Press the function key OFFSET SETTING Press the soft key SETTING.

Pin On Foam Wood Mould Making Cnc Routers

So to solve that problem you would set the z zero to the spoilboard.

Cnc machine zero setting. With a tool offset programmed your CNC machine will know exactly how far each tool extends from the spindle. Do not hold in any other keys or risk loosing parameters programs and. The zero plate is placed on top of the raw material.

If you cant get to the position you would like hold in P and. If you set your z zero to the top of the material in the wrong spot you could end up with a cut that is too deep or not deep enough. The origin of a Toolpath is where X Y and Z are all equal to Zero.

Power on the control pressing letter P and the cancel CAN key and keep them depressed until the CRT Display comes up plus an additional 5 seconds. The macro automatically moves the spindle down until the end mill touches the plate and closes the electrical circuit which signals the CNC to zero the z. Then release P and Cancel keys.

CNC Machine Training. Its pretty common to use multiple tools for the same job but you need a way to account for different tool lengths. In the job setup you just check Z zero at the Machine Bed and the code will be output correctly for Z zero at the bottom.

When there are no active offset codes the machine will use its machine zero machine reference or home position instead of the part zero G54 through G59. When doing profile toolpaths and using material where the thickness may vary slightly Zeroing to the machine Bed will make sure that you are always cutting through the part the same amount regardless of the material thickness. This video discusses how to set up your material zero out your machine and referencing your axes.

The location is always marked by this. Zero Return parameter setting procedure for Fanuc 1618 and 16i18i Controls Move the axis to where you think zero return should be. So part zero sits in space rather than actually being on the part.

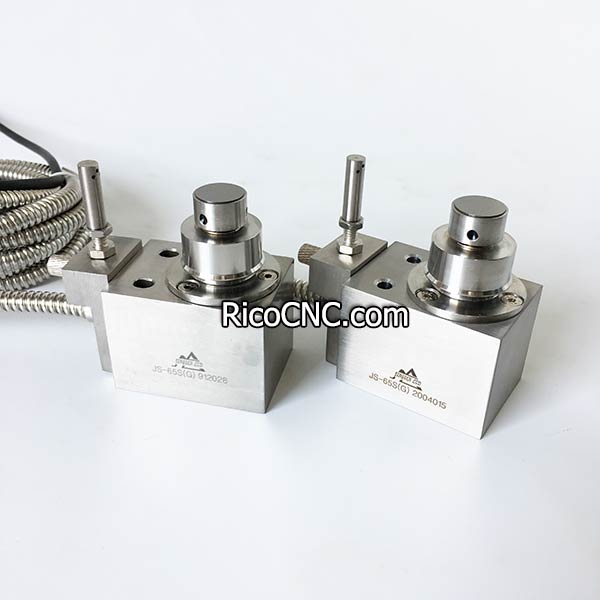

Product description Z Axis tool length setter is an assistant tool for setting tool length on CNC machines. Your machine would then start your cut at 34 above the spoilboard regardless of your actual material thickness. And the result is that the CNC determines exactly where the top surface of the material is and sets it as Z 0.

On CNC lathes including both front and rear lathe types with two axis models the machine zero is lo cated at the furthest distance from the lathe centerline in each axis X-origin of the lathe and also at the furthest distance from the headstock face Z-origin of the lathe. Use a drill chuck and a pointer The first method of CNC milling part zeroing is better to use when you have ample. Youre typically going to make the corner part zero.

This is useful to verify that the machine will not potentially hit any clamps or other obstructions that might be present. Navigating X Y axis to your New Start PointOrigin. Move the tool from the machines home.

Touch the stock slightly with an end mill This technique is. Programming tool offsets into your CNC machine make this easy work. Top free shipping Z Axis Zero Setter with a Table Zero Setting Gauge for CNC Machine 50mm - 0005mm Z Axis Tool Length Setter Click here.

This Z axis tool setters preset height is 50000005mm. Since youll be starting usually with unmachined material itll be important to leave some allowance for machining in your CAD drawing. Tutorial and Methods of CNC Mill Zero Setting - How to Set Zero Point in CNC 1.

This video is a natural sucessor to the previous one on squaring your machineIf you do not calibrate your machine then noting you make will be the right siz. There are several ways to record a tool offset. Once a file is loaded in UCCNC and the zero point set a yellow dot will appear and show at the set start point.

Manually jogging the machine the dot will move. These dimensions are factory fixed are known and can be verified. It is not recommended to set your machine zero home position at the part datum you need to recognise the difference between the two and understand how they relate to each other.

As mentioned in the prior section for this project as shown visually above the Start PointOrigin is in the bottom-left corner of the project.
