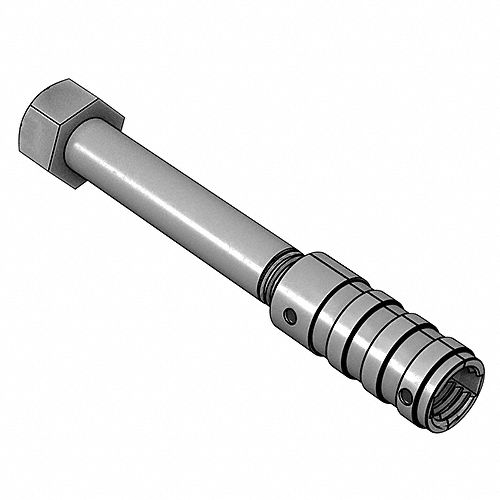

Machine Bolt With Expansion Shield

The Wej-It single expansion shield features a unique expansion cone that draws itself into the anchor body during installations with a machine screw. Contact Fastener Solutions for more information regarding custom bolts.

Bolt Types Woodworking Projects That Sell Woodworking Storage Easy Woodworking Projects

These heavy duty machine bolt anchors are designed for use in concrete brick or stone.

Machine bolt with expansion shield. The Single is a machine bolt anchor designed for use in concrete. The Screw Length can be Determined by Adding the Length of the Lag Shield the Thickness of Material to be Fastened Plus 14 as the Tip of the Lag Screw Bolt Must Protrude Out from the Bottom of the Anchor to Ensure Proper Expansion. Screw length needs to be at least the length of the anchor plus the thickness of the material.

They are inserted into a pre-drilled hole and sit flush with the base material. Job site tests are recommended when used in base materials of questionable strength or consistence. As the bolt is tightened the threaded cone is drawn up into the expansion shield creating a wedging action.

The blank in one end has an inwardly bent engagement portion. Fastener Bolt Screw Supplier Philippines. The Double Expansion Anchor is a great fastener when working with soft masonry or base materials of questionable strength.

As the anchor is tightened the wedge-shaped cone is drawn into the shields compressing them against the base material. Come to Grainger for a large expansion shield selection that includes expansion anchor taper bolt and lag shield options for anchoring attachments to masonry or concrete surfaces. An expansion shield for anchoring a machine screw or bolt in a hole in masonry concrete or stone comprises a strip-like blank of sheet helically wound around a shaft.

Lag shields designed for anchoring into concrete block and brick and are available in many different styles including lag screw shields and machine screw shields. It should be noted that to ensure proper expansion each shield anchor should be used in conjunction with the appropriate screw - Lag screws for lag shields and machine screws for machine screw anchors. Machine screw expansion shields are suitable for medium to heavy loads in dead variable or vibratory conditions in all types of masonry and natural stone.

Double Shield Expansion Anchor. This rugged hardware consists of tough durable metal that is driven into a drilled. The Single consists of a preassembled set of expansion shields and an expander cone formed from zamac alloy.

Expansion Shield Anchors at Empire Bolt Screw. It can be used in solid concrete block brick and stone. They are made of a rustproof zinc alloy.

Once all of these factors have been determined you can find the expected holding values in the technical information below. Load capacities up to 3000 PSI in concrete. Expansion Shield Anchors are utilized for light to medium duty anchoring into concrete brick or block materials.

One turn of the shield overlaps a previous turn. The Single is not recommended for use in overhead or life safety applications. 7TMW Inc is one of the most trusted manufacturer of Anchor Bolt Steel Fastener Bolt Base Plate Hexagonal Nut Chemical Bolt Chemical Epoxy Machine Bolt and other steel product in the Philippines.

The size of the anchor refers to the diameter of the machine boltscrew used to expand this anchor. Bolts are externally threaded fastener products that are used in combination with equally threaded nuts to join two or more components. The Single Expansion Anchor is available in 14 516 38 12 58 and 34 diameters.

The Single Expansion Anchor is made from a highly corrosive zinc-based alloy called Zamac. Lag Shield Anchors - Expansion Shields. The Double is a dual expansion machine bolt anchor particularly suited for materials of questionable strength or consistence such as stone.

They are available in both a Single style which makes contact with the base material at a single point once the anchor is properly set and also a Double style which. Minimum embedment equals anchor length. The Lag Shield is Rustproof and is Used With Lag Screws to Provide a Dependable Fixing.

A machine threaded bolt is used to expand the Single Expansion Anchor and can be removed and replaced without affecting the holding values of the anchor. Standard inch and metric bolts are available in a variety of sizes strengths materials and finishes.

Anchors 83852 Expansion Anchor 3 8 In Dia Pk50 Dewalt Engineered By Powers 09665 Pwr Buy It Now Only 30 53 On Ebay Machine Bolt The Expanse Anchor

Expansion Shield Anchors And Lag Shields Grainger Industrial Supply

M2 X 3mm Laptop M 2 Ssd Hdd Hard Drive Phillips Flat Head Screw Nvme Sata 2 Pcs

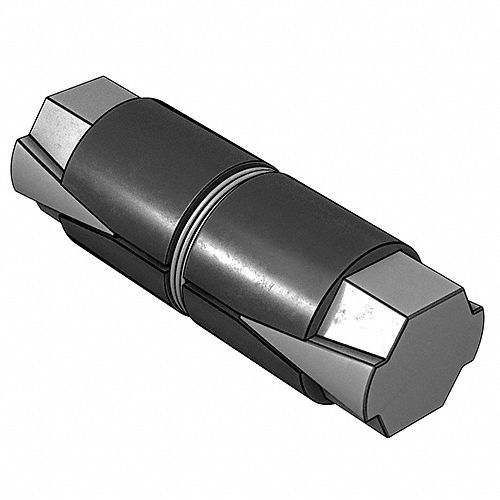

Double Expansion Anchor Expansion Shield Anchors And Lag Shields Grainger Industrial Supply

Double Expansion Anchors How Do You Use Them Albany County Fasteners

1 4 Single Expansion Anchor 100 Box The Expanse Concrete Setting Tools

Double Expansion Shield Drop In Anchor Shield Anchor

Double Expansion Shield Drop In Anchor Shield Anchor

Confast Single Expansion Anchor

Zinc Plated Lag Shield Expansion Anchors

Machine Screw Anchor Screw Anchor Drop In Anchor

In This Video One Of Our Resident Fastener Specialists Showcases Various Types Of Cap Nuts The Specialist Di Industrial Packaging Packaging Machine Fasteners

Anchors 83852 8 Packs 25 Pieces Per Pack 200 Total Blue Hawk 5 1 In Short Lag Shields 33294 Buy It Now Only 31 99 On Ebay Things To Sell Shield Blue

M8 X 45mm 304 Stainless Steel Phillips Machine Screw Bolt 5pcs A1h6 Machine Screws Bolt Screws And Bolts

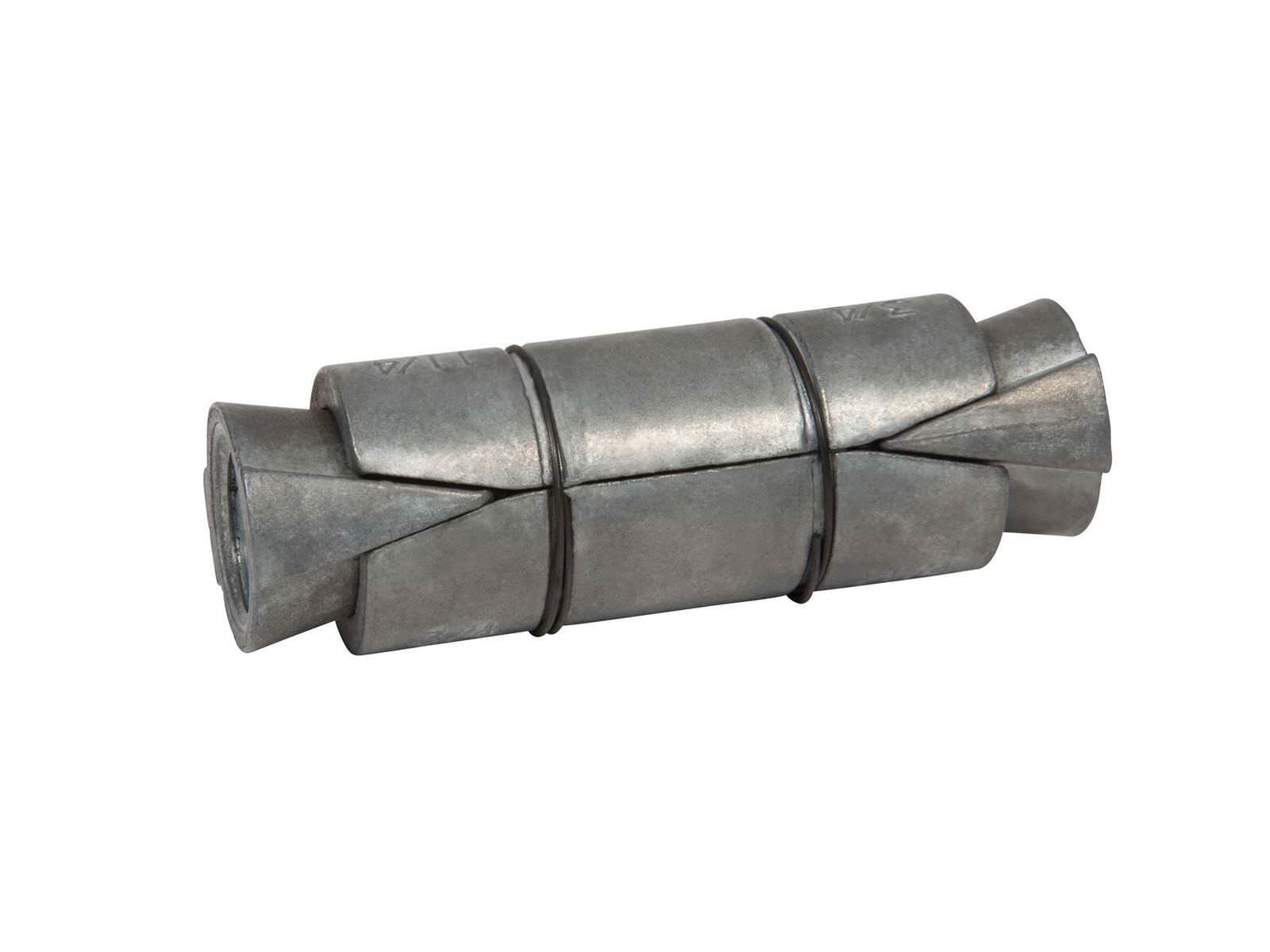

1 4 Double Expansion Anchor 100 Box
